HIGHSUN PVC fitting machine, clamping force:168-850T
1.Adopt the special design of screw & barrel for PVC material, install the air fan for cooling barrel to avoid the material overheating and coking;
2. Increased bigger grade oil motor to facilitate PVC raw material plasticizing and molding;
3.Extended width of security door for making PVC fitting mould with better installation, to suit PVC fitting molds (core puller cylinder) installation convenience;
4.Supply with special technical solution for PVC injection, not only modify the screw & barrel like others, but also the special solution with complete hydraulic system and injection unit.

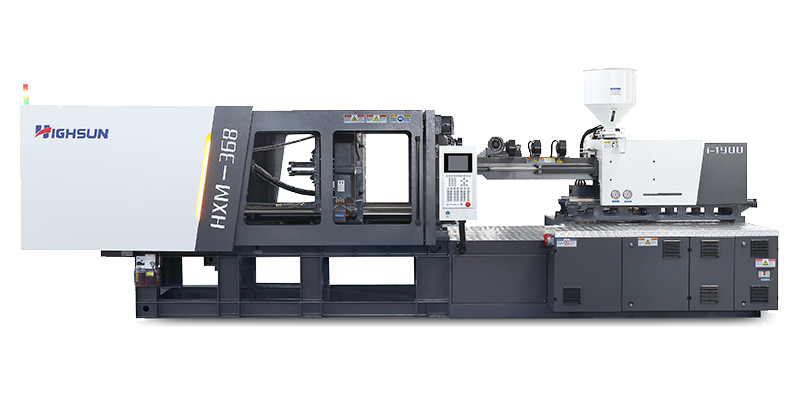

MODEL: HXM368PVC |
|||
TECHNICAL PARAMETER TABLE |
|||
INJECTION UNIT |
SCREW DIAMETER |
mm |
70 |
SCREW L/D RATIO |
L/D |
21 |
|
INJECTION CAPACITY IN THEORY |
cm3 |
1308 |
|
INJECTION WEIGHT(PVC) |
g |
1560 |
|
INJECTION PRESSURE |
MPa |
171 |
|
INJECTION RATE |
g/s |
460 |
|
PLASTICIZING CAPACITY |
g/s |
60 |
|
SCREW SPEED |
rpm |
160 |
|
CLAMPING UNIT |
CLAMPING FORCE |
KN |
3680 |
MOVING MOULD-PLATE STROKE |
mm |
660 |
|
MAX. MOULD HEIGHT |
mm |
750 |
|
MIN. MOULD HEIGHT |
mm |
250 |
|
SPACE BWTWEEN TIE-BARS (W*H) |
mm |
720*670 |
|
HYDRAULIC EJECTOR FORCE |
KN |
134 |
|
HYDRAULIC EJECTOR STROKE |
mm |
180 |
|
EJECTOR NUMBER |
n |
13 |
|
OTHERS |
PUMP PRESSURE |
MPa |
17.5 |
MOTOR POWER |
KW |
40 |
|
HEATING CAPACITY |
KW |
23.15 |
|
MACHINE DIMENSION (L*W*H) |
m |
7.4*2.59*2.24 |
|
MACHINE WEIGHT |
t |
12 |
|
OIL TANK CAPACITY |
L |
680 |
