1.Specially designed screw and high-torque melt motor are used to facilitate the plasticization and molding of PET raw materials;
2.Equipped with an ejection device sufficient to meet the production of PET products;
3.The high-power motor-pump system makes the cycle period shorter and increases the production efficiency;

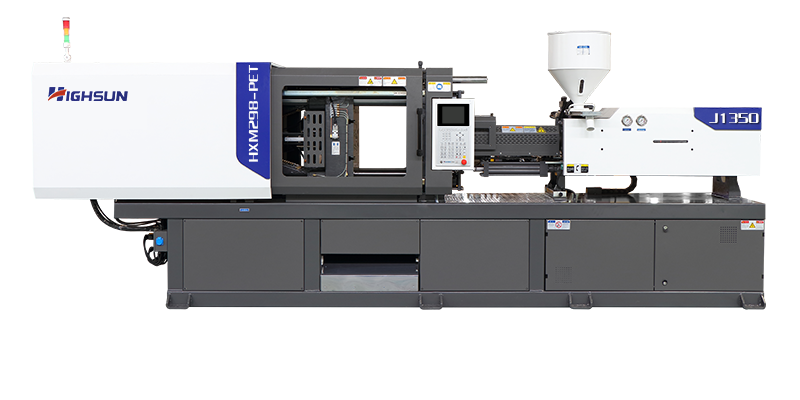

MODEL:HX(*)298PET
|
|||
TECHNICAL PARAMETER TABLE | |||
INJECTION UNIT | SCREW DIAMETER | mm | 75 |
SCREW L/D RATIO | L/D | 24 | |
INJECTION CAPACITY (THEORETICAL) | cm3 | 1502 | |
INJECTION WEIGHT(PET) | g | 1742 | |
INJECTION PRESSURE | MPa | 137 | |
INJECTION RATE | g/s | 376 | |
PLASTICIZING CAPACITY | g/s | 85 | |
SCREW SPEED | rpm | 160 | |
CLAMPING UNIT | CLAMP FORCE | KN | 2980 |
OPEN STROKE | mm | 600 | |
MAX. MOULD HEIGHT | mm | 690 | |
MIN. MOULD HEIGHT | mm | 230 | |
SPACE BETWEEN TIE-BARS (W×H) | mm | 605*590 | |
EJECTOR STROKE | mm | 150 | |
EJECTOR FORCE | KN | 125 | |
EJECTOR NUMBER | n | 13 | |
OTHERS | PUMP PRESSURE | MPa | 16 |
MOTOR POWER | KW | 30/37 | |
HEATING POWER | KW | 24.73 | |
MACHINE DIMENSION (L×W×H) | m | 7.35*1.75*2.15 | |
MACHINE WEIGHT | t | 9 | |
OIL TANK | L | 415 |
