HXM488-G: HXM optimized edition for crate/painting bucket

Optimized feature:

1.Enlarged motor & pump system, optimized hydraulic system to satisify high-performance with quicker cycle. Like crate(less than 2kg) cycle time20S;
paiting bucket(780-800g) cycle time 20S.
2.Specially designed screw and barrel with structure of quicker plasticization, shorten the material charging cycle.
Optional with bi-metal screw and barrel to compatible with recycling material for crate.
3.Optional with automatic facilities to improve the production efficieny.

Product Details

MODEL: HXM488-G

TECHNICAL PARAMETER TABLE



INJECTION UNIT

SCREW DIAMETER

mm

95

SCREW L/D RATIO

L/D

19

INJECTION CAPACITY IN THEORY

cm3

2622

INJECTION WEIGHT(PS)




g

2386

oz

84.1

INJECTION PRESSURE

MPa

146

INJECTION RATE

g/s

626

PLASTICIZING CAPACITY

g/s

95

SCREW SPEED

rpm

150

CLAMPING UNIT

CLAMPING FORCE

KN

4880

MOVING MOULD-PLATE STROKE

mm

830

    MAX. MOULD HEIGHT

mm

820

MIN. MOULD HEIGHT

mm

300

SPACE BWTWEEN TIE-BARS (W×H)

mm

820x800

HYDRAULIC EJECTOR FORCE

mm

125

HYDRAULIC EJECTOR STROKE

KN

210

EJECTOR NUMBER

n

13

OTHERS

PUMP PRESSURE

MPa

17.5

MOTOR /DRIVING POWER

KW

40+40

HEATING CAPACITY

KW

27

MACHINE DIMENSION (L×W×H)

m

8.05*2.07*2.41

MACHINE WEIGHT

t

16.9

OIL TANK CAPACITY

L

960

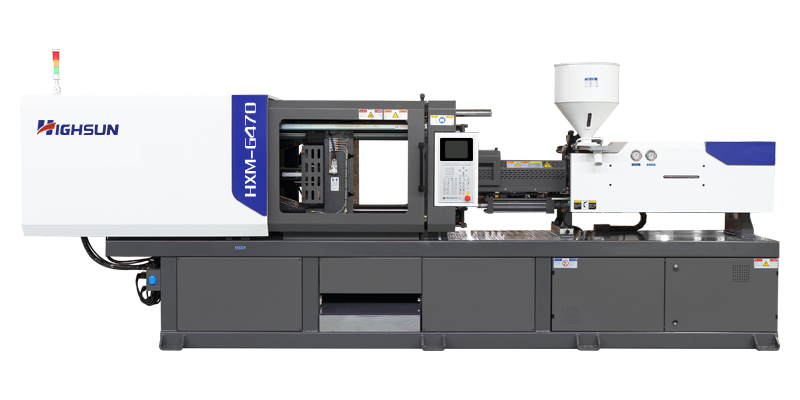

Highsun plastic injection molding machine

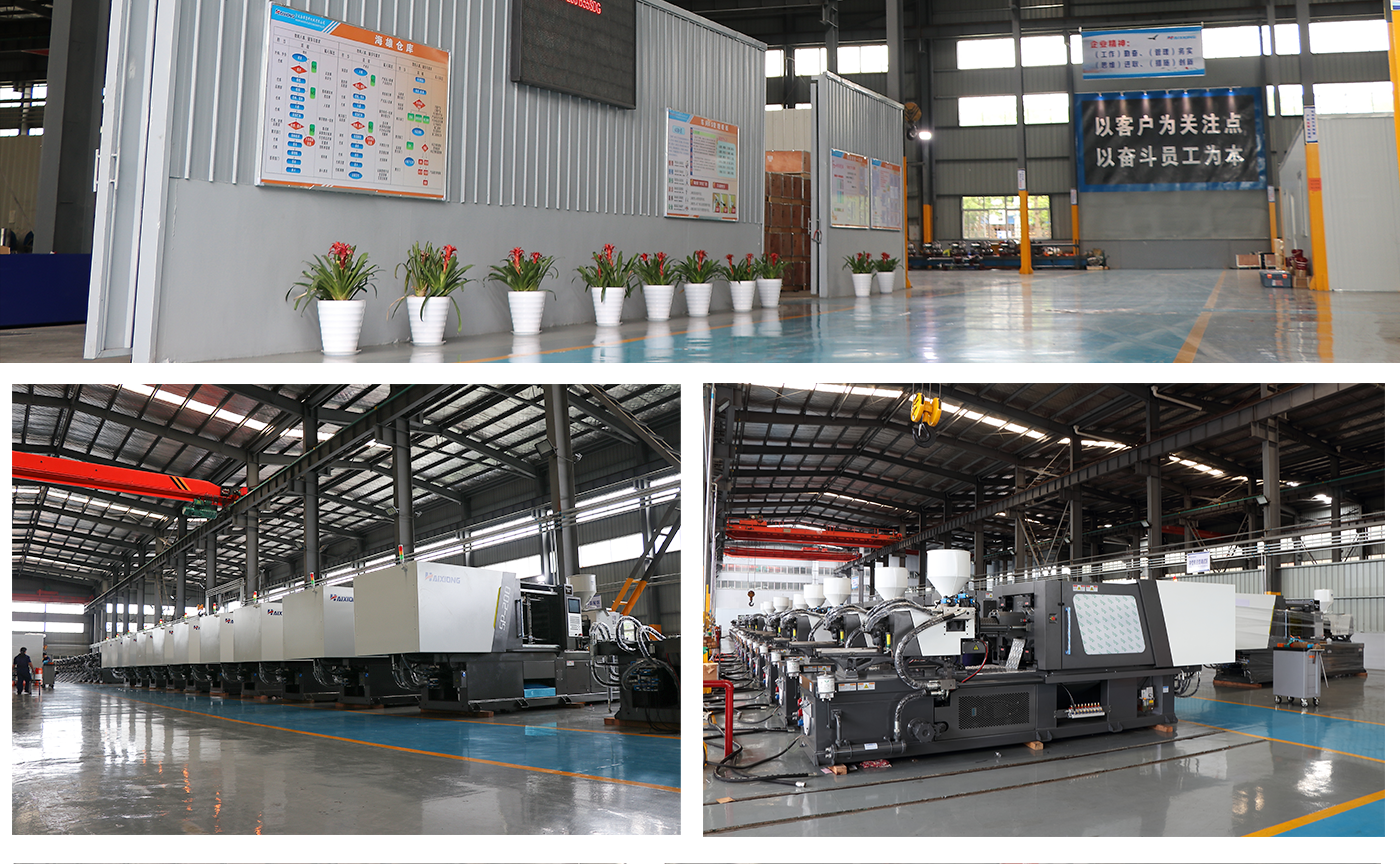

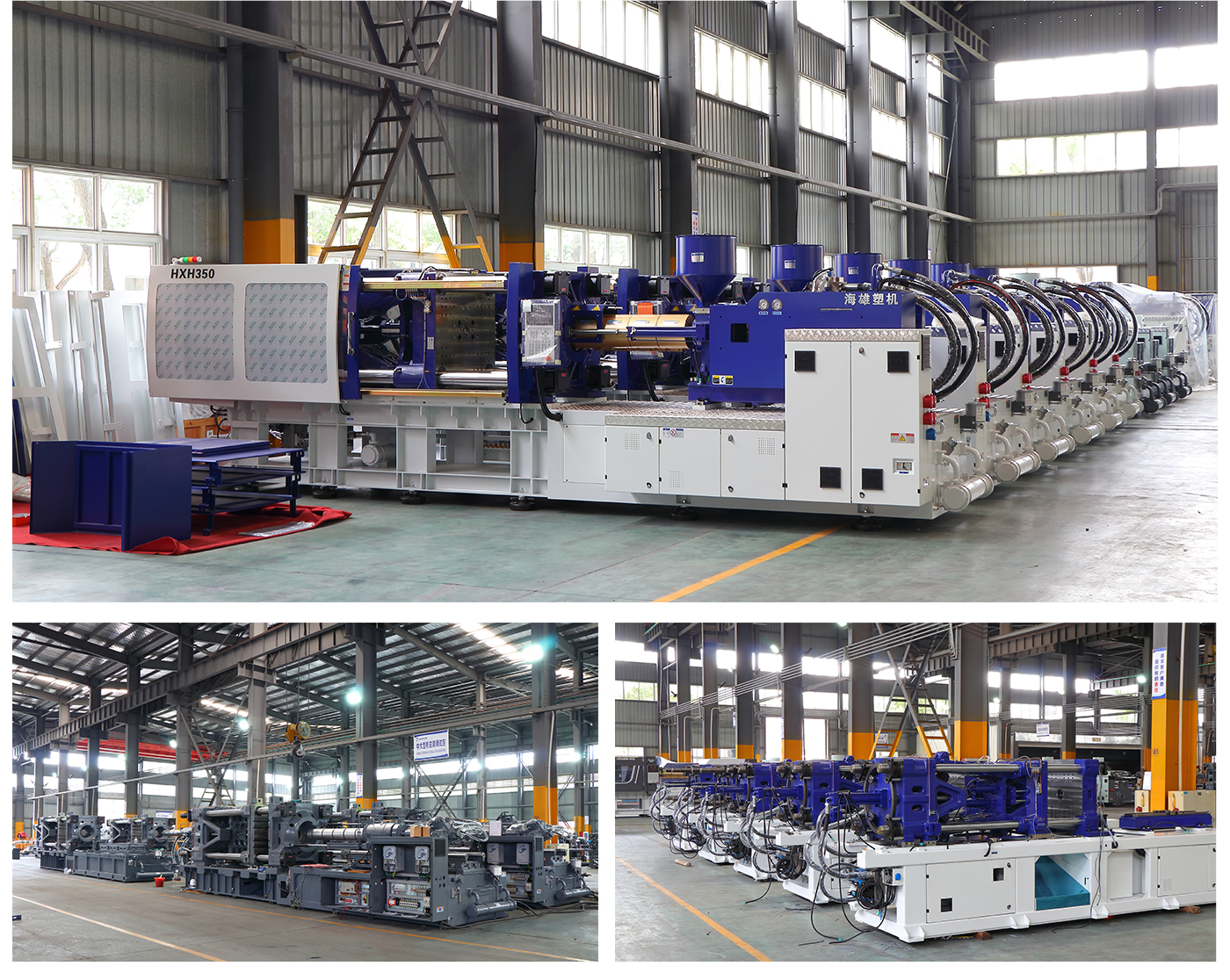

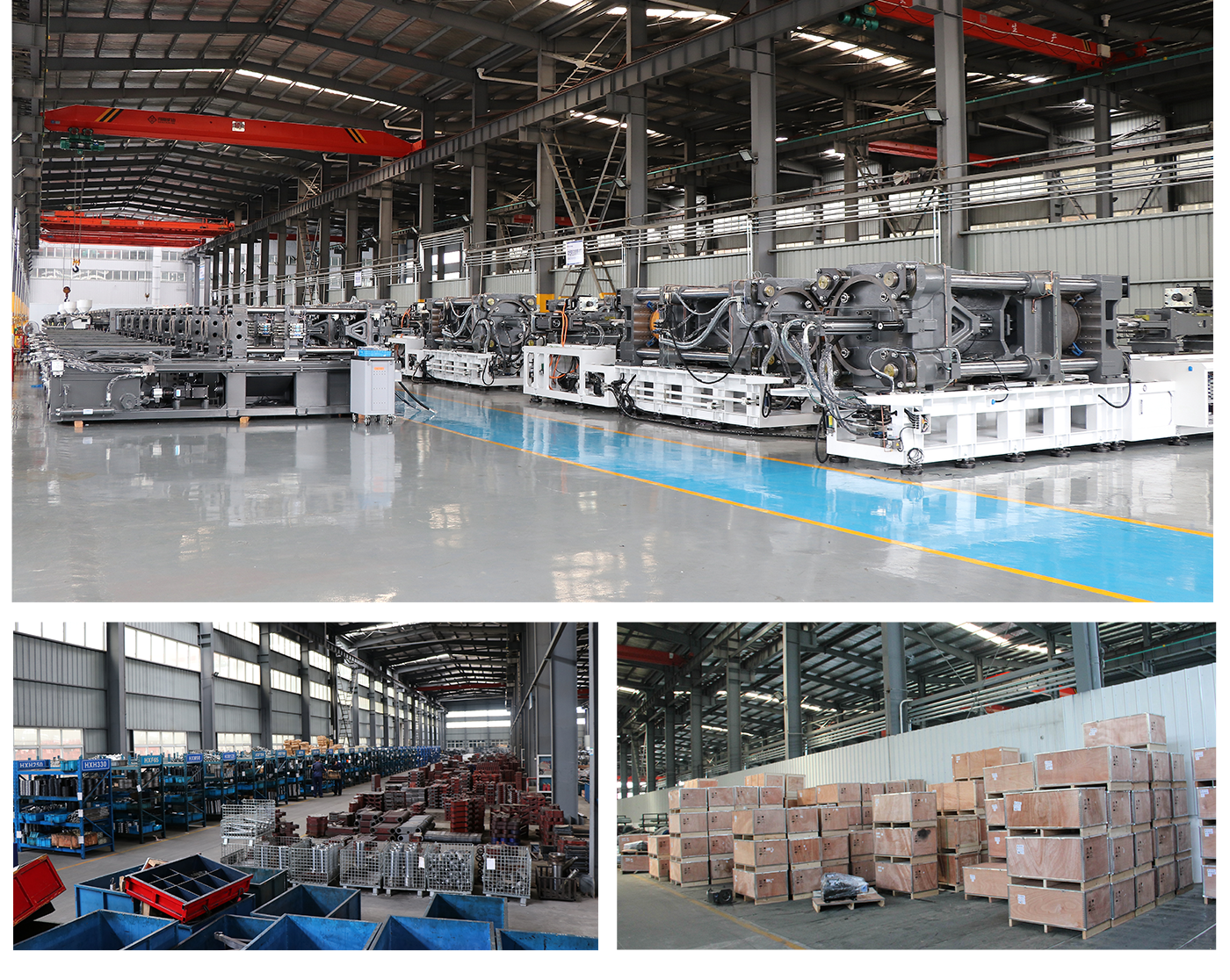

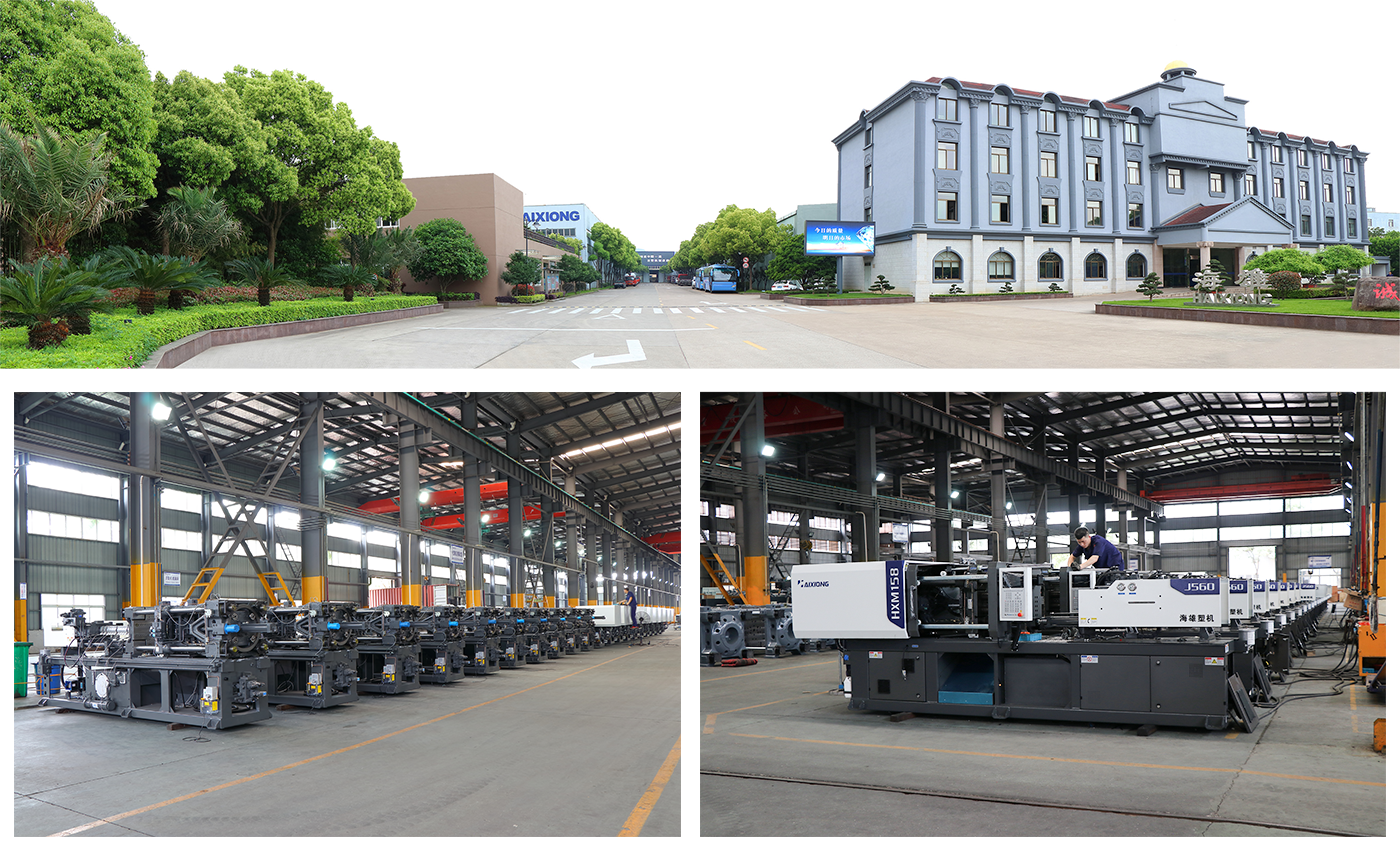

Machine production pictures gallery
